Isolated crystallites





Isolated graphite crystallites, recognizable by their characteristic geometric shapes and Raman spectra, are occasionally precipitated on suddenly cooled samples:

Bibliography

About me

Why is it made?

How is it made?

What is it?

Curved Kish Home

Isolated crystallites

Galleries

email







triangular graphite crystal on nickel-splattered filament
127 KB



Triangular crystallites precipitated from tungsten-doped nickel:

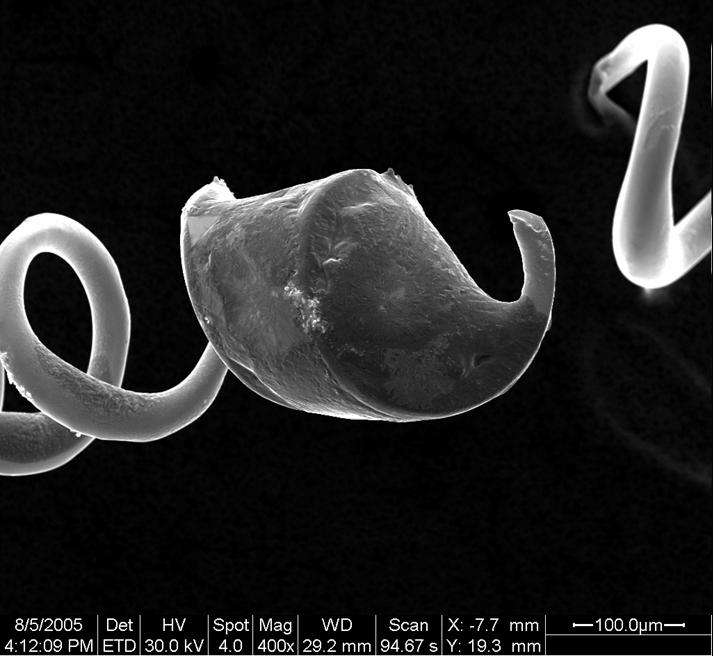

Splattering carbon-saturated molten nickel against a glowing tungsten filament produces a surprising feature.  Notice the small equilateral triangle on the left end of the otherwise gnarly nickel lump.
48 KB

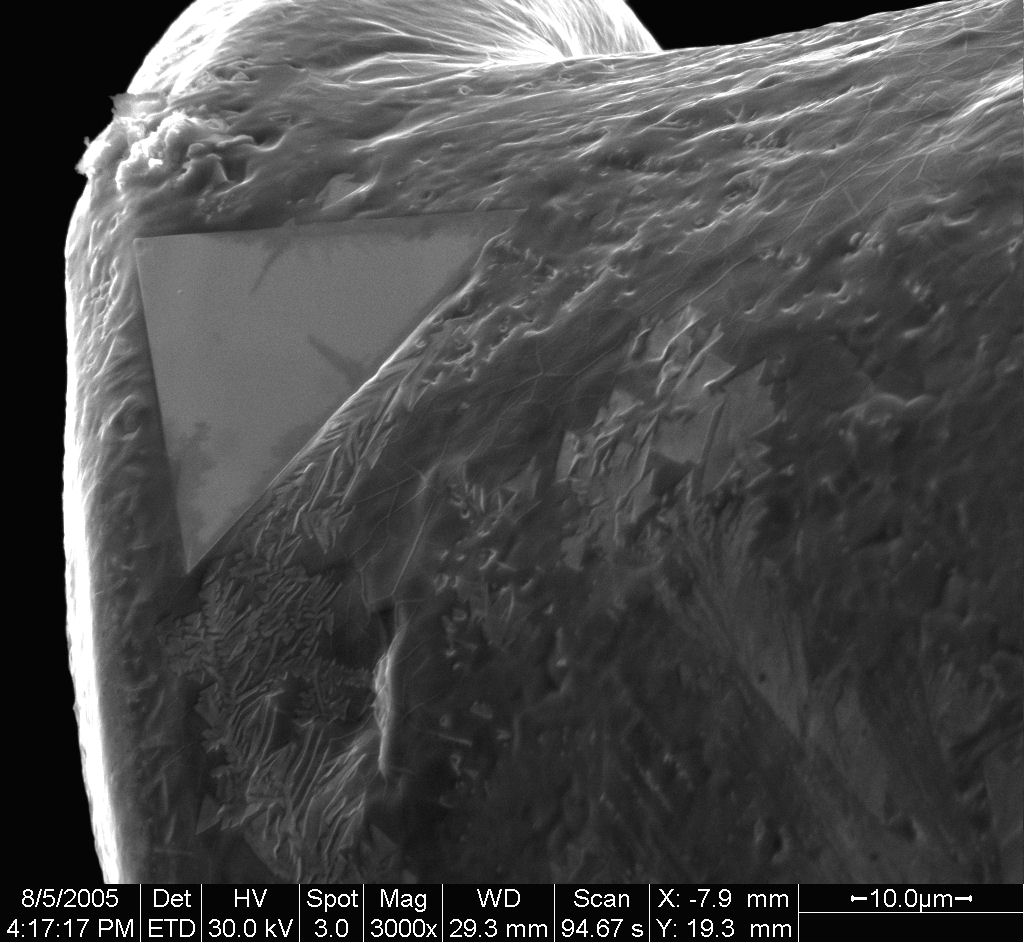

Close view of the crystallite.  Raman analysis reveals graphite in the triangle.  X-ray microanalysis reveals a high concentration of tungsten, which appears to be the magic ingredient that makes the crystals triangular, rather than hexagonal.



triangular graphite crystal on tungsten-doped nickel, medium resolution





Hexagonal crystallites precipitated from iron:

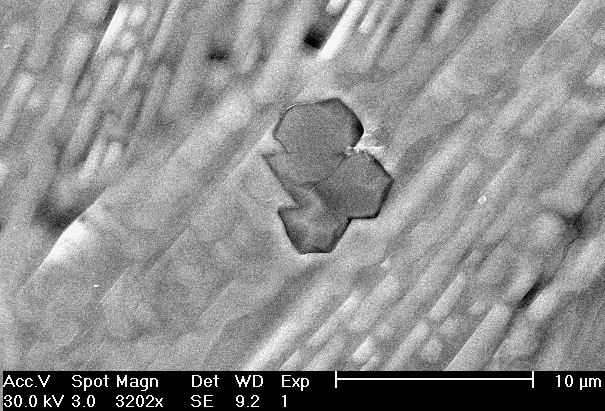

This nearly hexagonal graphite crystallite swiftly precipitated from iron is more typical than the triangular crystallite shown above.

100 KB



79 KB

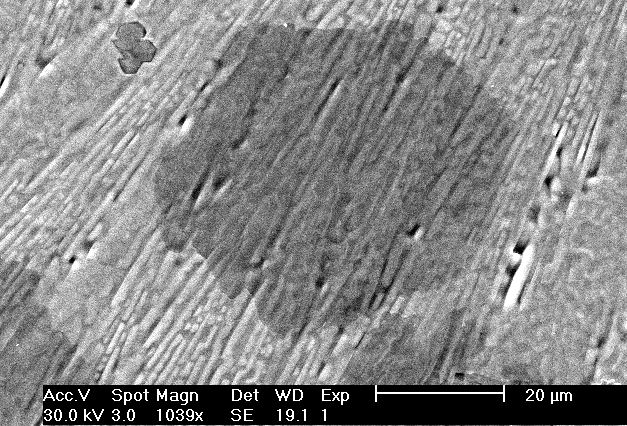

This small crystallite, visible to the upper left of the larger crystallite, at left, seems to be biting into the iron surface.  The tendency of small graphene molecules to spontaneously curve to reduce edge energy has been noted in the fullerene literature[2].
